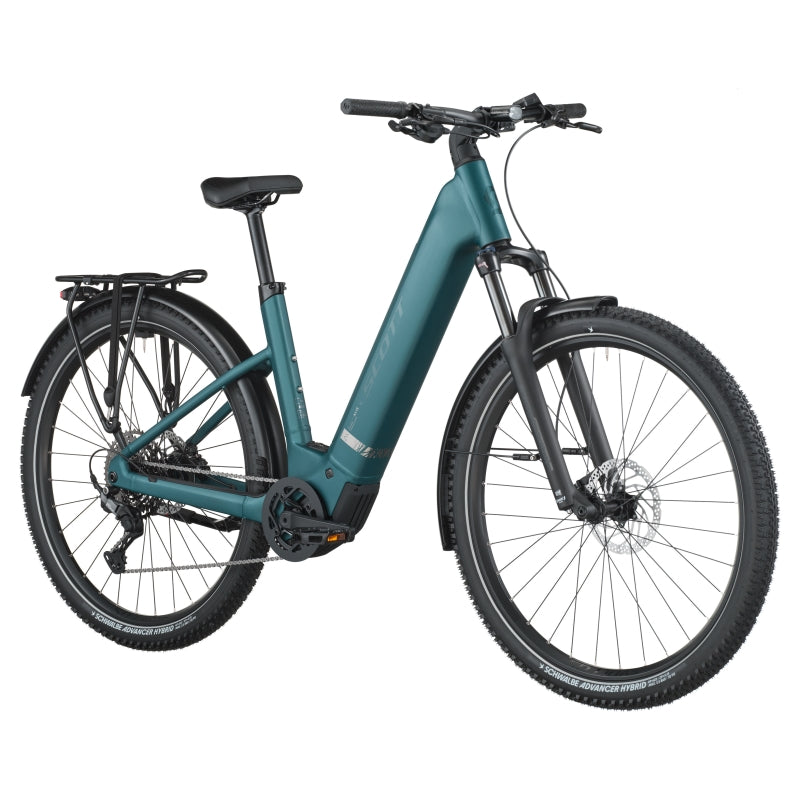

Scott Axis 30 Wave Cypress Green

About Scott Axis 30 Wave Cypress Green
The perfect bridge between urban cruising and mountain biking. The SCOTT AXIS eRIDE is equipped with the Bosch Performance motor and a 540Wh battery, perfect for weekend explorations in the outdoors. Wanna bring the kids and dogs with you? No problem. Thanks to the new Syncros Heavy Duty rack that can carry up to 27kg, and the new Syncros Thru-Axle enabling you to tow cargo trailers, you can load up the Axis with everything you need to make the most of your rides.

Axis comes in two sleek frame shapes, with the Wave allowing for a lower standover height. Being step-through, it fits more riders, making it not only the best design for mounting and dismounting the bike, but also a go-to for families who want to share a bike between multiple riders. As comfy as you'd like. Ride Axis.

Features
Axis eRIDE Alloy Frame

Bosch Performance, PT540 SmartSystem Engine System

Suntour 120mm Fork

Shimano CUES 10 Speed Drivetrain

Shimano Disc Brakes

Syncros bike trailer adapter Lezyne front / Syncros rear-rack integrated rear Lights / Curana alloy fenders

Racktime carrier Snap It 2.0 compatible, 27KG

Please note that bike specifications are subject to change without prior notice.

About Scott
Scott Sports was founded in 1958 by Ed Scott in Idaho, USA and operates its headquarters from Givisiez, Switzerland. They produce bicycle, wintersport, motorsport and running equipment. They are known for their innovative products which have been used to win world championships and races at the highest level.

Frame
Frame: Alloy S-XL=29”, 6061 Alloy custom butted tubing, Top extraction battery, UDH Interface, 12x148mm with 52mm Chainline
Fork: SR Suntour XCM34 Coil, Tapered, 15x110 TA, 120mm Travel

Drivetrain
Rear Derailleur: Shimano CUES RD-U6000GS 10 Speed
Shifters: Shimano SL-U600010RC
Crankset: FSA CK-220 165mm
Chainring: Miranda 36T w/Chain Guard
Chain: Shimano LG500
Cassette: Shimano CS-LG40010 11-48T 10 Speed
Brakes: Shimano BR-MT200 Disc Brakes
Brakes Rotor: Front: SM-RT30 CL 180mm, Rear: RT-EM300 CL 180mm

E-Bike
Drive Unit: Bosch Performance
E Motor Battery: PowerTube 540Wh
E Motor Charger: 2A Charger
E Motor Display: Bosch Purion 200

Components
Handlebar: Syncros 3.0 720mm, 31.8mm, Backsweep 9°, 12mm rise
Grips: Syncros Lock On Grip
Stem: Syncros with front Light mount
Headset: Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm
Saddle: Syncros Capilano
Seatpost: Syncros M3.0 / 31.6
Pedals: VP VPE-506

Wheels
Hub (Front): Shimano HBTC50015BB, 15x110mm
Hub (Rear): Shimano FHTC500HMBB, 148x12mm
Spokes: Stainless Black
Rims: Syncros X18 Disc
Front Tyre: Schwalbe Advancer 60-622 Wired
Rear Tyre: Schwalbe Advancer 60-622 Wired

Other
Approx. Weight: 29.7 kg
Extras: Curana alloy profile Fender, Ursus Kickstand
Lights: Front Lezyne Hecto E65, Rear Super Bright Lezyne Light
Rack: Racktime Rack SnapIt 2.0 25KG

Max. System Weight: 160 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

Please note that bike specifications are subject to change without prior notice.
